Deutsch  |  SKU: DTM06-6S

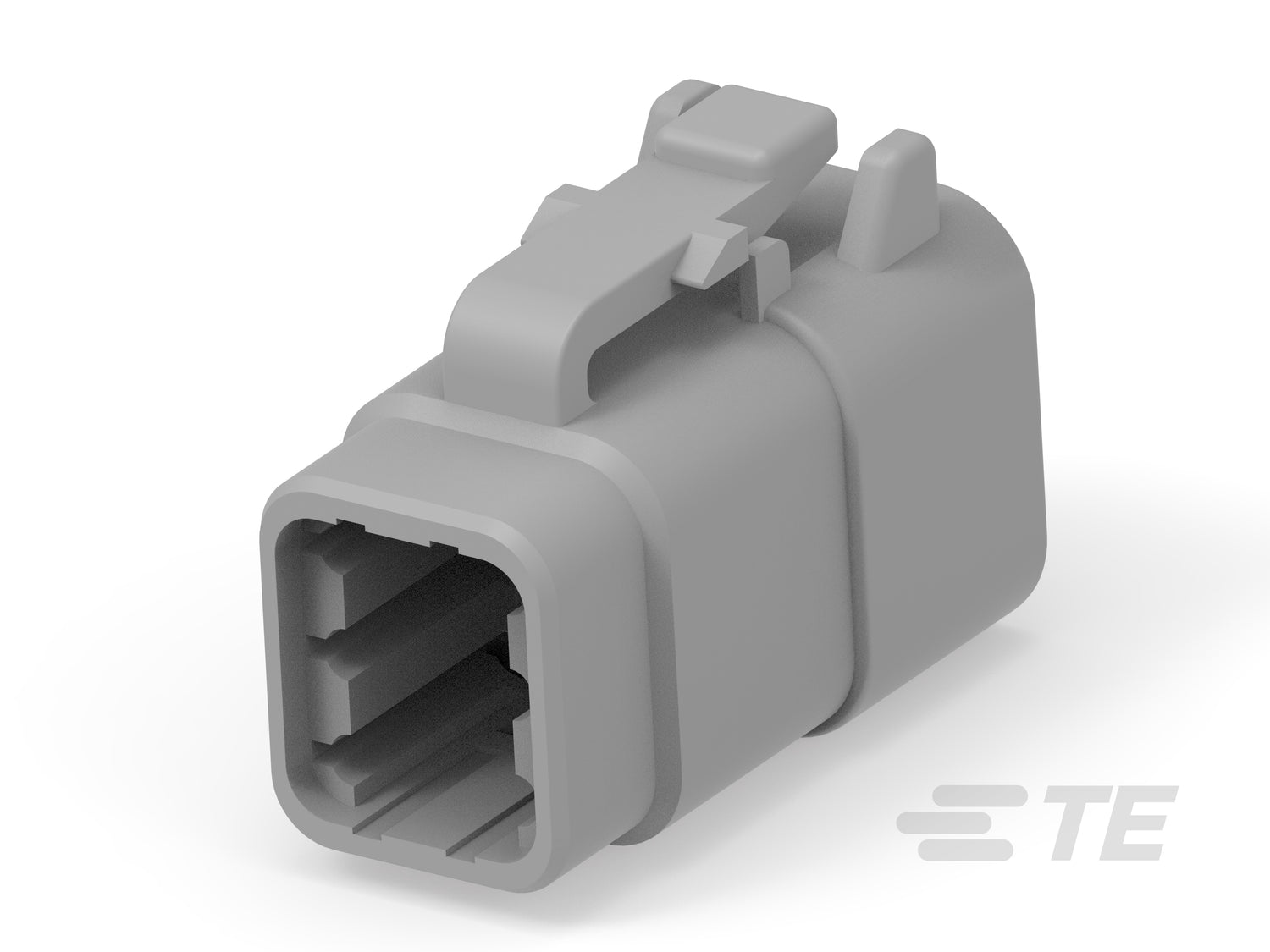

DTM06-6S Deutsch DTM 6-Way Plug Housing - Socket

DTM06-6S is the standard gray Deutsch DTM Series 6-way plug housing for Size 20 socket contacts, designed for sealed wire-to-wire electrical harness connections where a compact, serviceable multi-position interface is needed. This DEUTSCH DTM socket-contact plug uses Size 20 contacts and is intended to be paired with the corresponding DTM housing on the opposite contact side. The system is specified for up to 7.5 A per contact and 250 V AC/DC, with environmental protection dependent on correct terminals, cavity sealing and assembly. Choose this standard configuration when the special rear-cap, XCAP or colour variants are not required.

Typical applications include multi-circuit sensor and control harnesses, industrial equipment, off-highway machinery and automotive electrical systems needing several sealed signal connections in one housing.

  • Series: DEUTSCH DTM
  • Housing: 6-way plug, socket-contact side
  • Contact size: Size 20
  • Housing colour: Gray
  • Sealing: Sealable housing; correct contacts and assembly are required
  • Operating temperature: -55°C to +125°C
  • Contact current rating (maximum): 7.5 A per contact, subject to wire and application limitations
  • Voltage rating: 250 V AC/DC

Dimensions

  • Connector height: 30.1 mm
  • Product length: 15.2 mm
  • Product width: 20.7 mm
  • Compatible insulation diameter: 1.3–3.0 mm

Mating Parts

For a standard DTM 6-way assembly, the corresponding pin receptacle housing is DTM04-6P. Confirm the mating configuration, seals and any modification-specific requirements before ordering.

Compatible Parts

Uses DEUTSCH DTM Size 20 socket contacts selected for the actual wire size and termination method. The corresponding standard plug wedgelock is WM-6S; confirm suitability for this exact modification and whether a wedgelock is included in the supplied assembly.

Browse DEUTSCH DTM Series connectors for other housing configurations.

Need help matching contacts, wedgelocks, mating housings or compatible tools? Speak to our team and we'll help you select the correct Deutsch DTM parts.


Quantity price breaks

1+
$1.95/each
50+7% off
$1.81/each$1.95
100+11% off
$1.73/each$1.95
500+16% off
$1.64/each$1.95
1000+19% off
$1.57/each$1.95
5000+24% off
$1.49/each$1.95
Part of DEUTSCH DT series
RoHS Compliant
ELV Compliant
Statement of Compliance

Technical Documentation

Product Specifications

Cable exit angle 180 °
Primary product color Gray
Blank cavity position 0
Number of positions 6
Number of rows 2
Contact current rating max 7.5 A
Contact size Size 20
Contact type Socket
Mating pin diameter .04 in
Compatible insulation diameter .053 – .12 in
Connector height 1.18 in
Product length .598 in
Product width .815 in
Row to row spacing .165 in
Nominal voltage architecture 48 V
Operating voltage 250 VDC
Centerline pitch .165 in
Housing material PA GF
Compatible with agency standar SAE J2030
Ip rating IP6K9K
Ul flammability rating UL 94V-0
Connector mounting type Cable Mount (Free-Hanging)
Mating alignment With
Mating alignment type Polarization
Strain relief Without
Terminal position assurance No
Circuit application Power
Packaging method Package
Packaging quantity 1
Connector contact terminates t Wire & Cable
Connector housing type Housing for Female Terminals
Connector shape Rectangular
Connector system Wire-to-Wire
Mixed hybrid connector No
Primary locking feature Integrated in Housing
Sealable Yes
Operating temperature max 257 °F
Operating temperature range -67 – 257 °F
Connector position assurance c No
Serviceable Yes
