Deutsch  |  SKU: DTM06-3S-E004

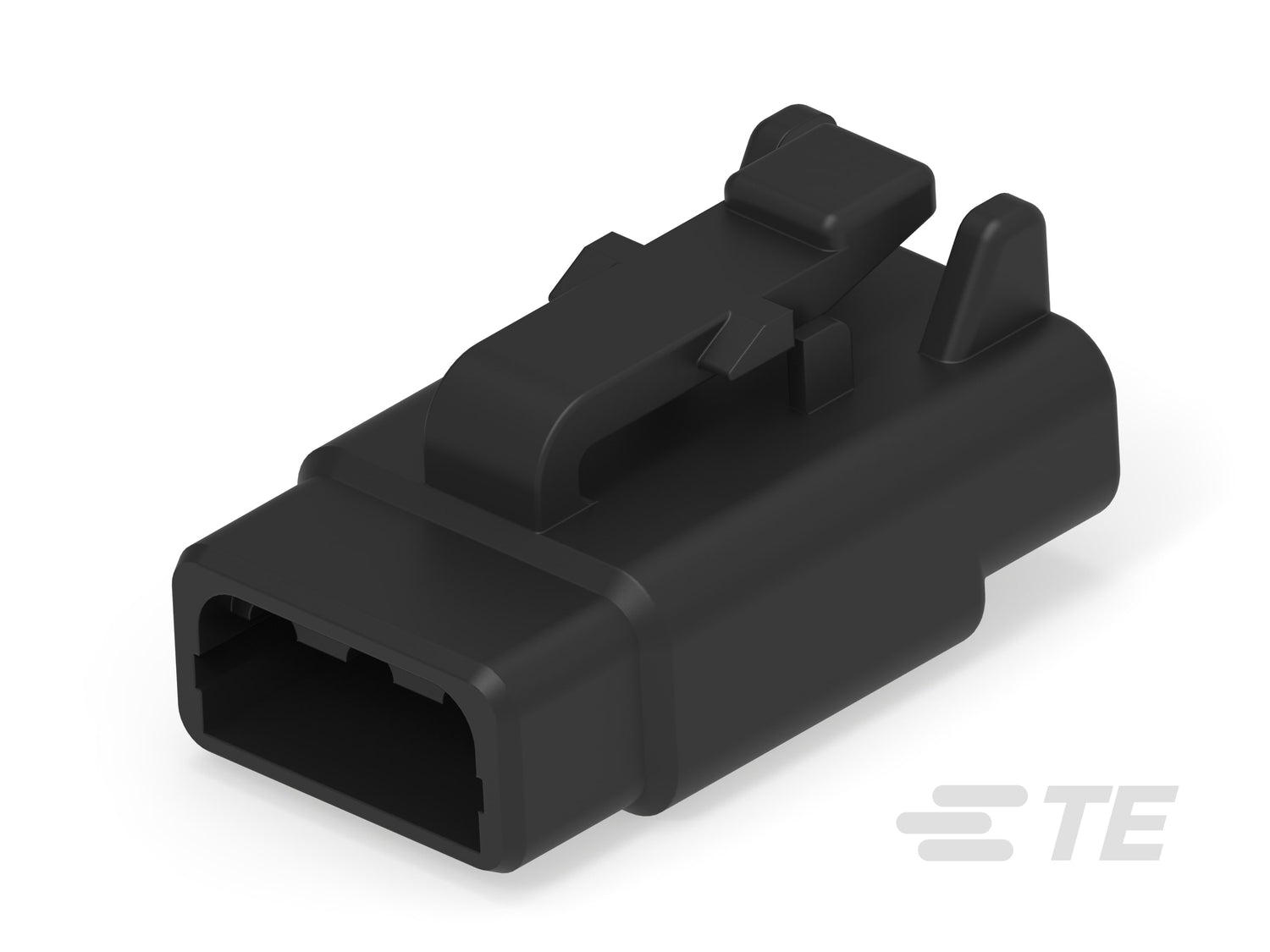

DTM06-3S-E004 Deutsch DTM 3-Way Socket Plug - Black

DTM06-3S-E004 is a Deutsch DTM Series 3-way black plug housing for Size 20 socket contacts for sealed wire-to-wire vehicle and equipment harnesses. The E004 suffix identifies the black housing version, distinguishing it from the standard gray 3-way DTM socket-contact plug without changing its basic function as a Size 20 contact housing. DEUTSCH DTM connectors are suited to compact, lower-current circuits requiring positive connector engagement and environmental sealing when correctly assembled. The connector system supports up to 7.5 A per contact and 250 V AC/DC, subject to the contacts, cable and assembly conditions.

Common applications include sensor and control wiring, vehicle and motorsport harnesses, agricultural or construction machinery and industrial equipment where sealed low-current connections are required.

  • Series: DEUTSCH DTM
  • Housing configuration: 3-way plug (socket-contact side)
  • Housing colour: Black
  • Contact size: Size 20
  • Contact type: Socket
  • Sealing: Sealable; sealing performance depends on correctly specified components and assembly
  • Operating temperature: -55°C to +125°C
  • Operating voltage: 250 V AC/DC (TE housing specification)
  • Contact current rating (maximum): 7.5 A per contact; depends on contacts, wire and operating conditions
  • Variant feature: black housing

Mating Parts

The standard 3-way DTM receptacle family is DTM04-3P (pin-contact side). Confirm the precise mating housing version, keying, seal configuration and any cap or boot requirements for this DTM06-3S-E004 variant before purchase.

Compatible Parts

Select DEUTSCH DTM Size 20 socket contacts to suit the actual wire gauge and termination process, together with the appropriate secondary lock/wedgelock for the 3-way plug configuration. Check supplied assembly contents and part-specific TE accessory data rather than assuming every accessory is included or fits every modified housing.

Browse DEUTSCH DTM Series connector housings for related configurations.

Need help matching contacts, wedgelocks, mating housings or compatible tools? Speak to our team and we'll help you select the correct Deutsch DTM parts.


Quantity price breaks

1+
$1.45/each
50+1% off
$1.44/each$1.45
100+6% off
$1.37/each$1.45
500+10% off
$1.31/each$1.45
1000+14% off
$1.25/each$1.45
Part of DEUTSCH DT series
RoHS Compliant
ELV Compliant
Statement of Compliance

Technical Documentation

Product Specifications

Cable exit angle 180 °
Primary product color Black
Blank cavity position 0
Number of positions 3
Number of rows 1
Contact current rating max 7.5 A
Contact size Size 20
Contact type Socket
Mating pin diameter .04 in
Compatible insulation diameter .053 – .12 in
Connector height 1.1 in
Product length .642 in
Product width .551 in
Nominal voltage architecture 48 V
Operating voltage 250 VDC
Centerline pitch .165 in
Housing material PA GF
Compatible with agency standar SAE J2030
Ip rating IP6K9K
Ul flammability rating UL 94V-0
Connector mounting type Cable Mount (Free-Hanging)
Mating alignment With
Mating alignment type Polarization
Strain relief Without
Terminal position assurance No
Circuit application Power
Packaging method Package
Packaging quantity 1
Connector contact terminates t Wire & Cable
Connector housing type Housing for Female Terminals
Connector shape Rectangular
Connector system Wire-to-Wire
Mixed hybrid connector No
Primary locking feature Integrated in Housing
Sealable Yes
Operating temperature max 257 °F
Operating temperature range -67 – 257 °F
Connector position assurance c No
Serviceable Yes
