Deutsch  |  SKU: DTM06-3S-E007

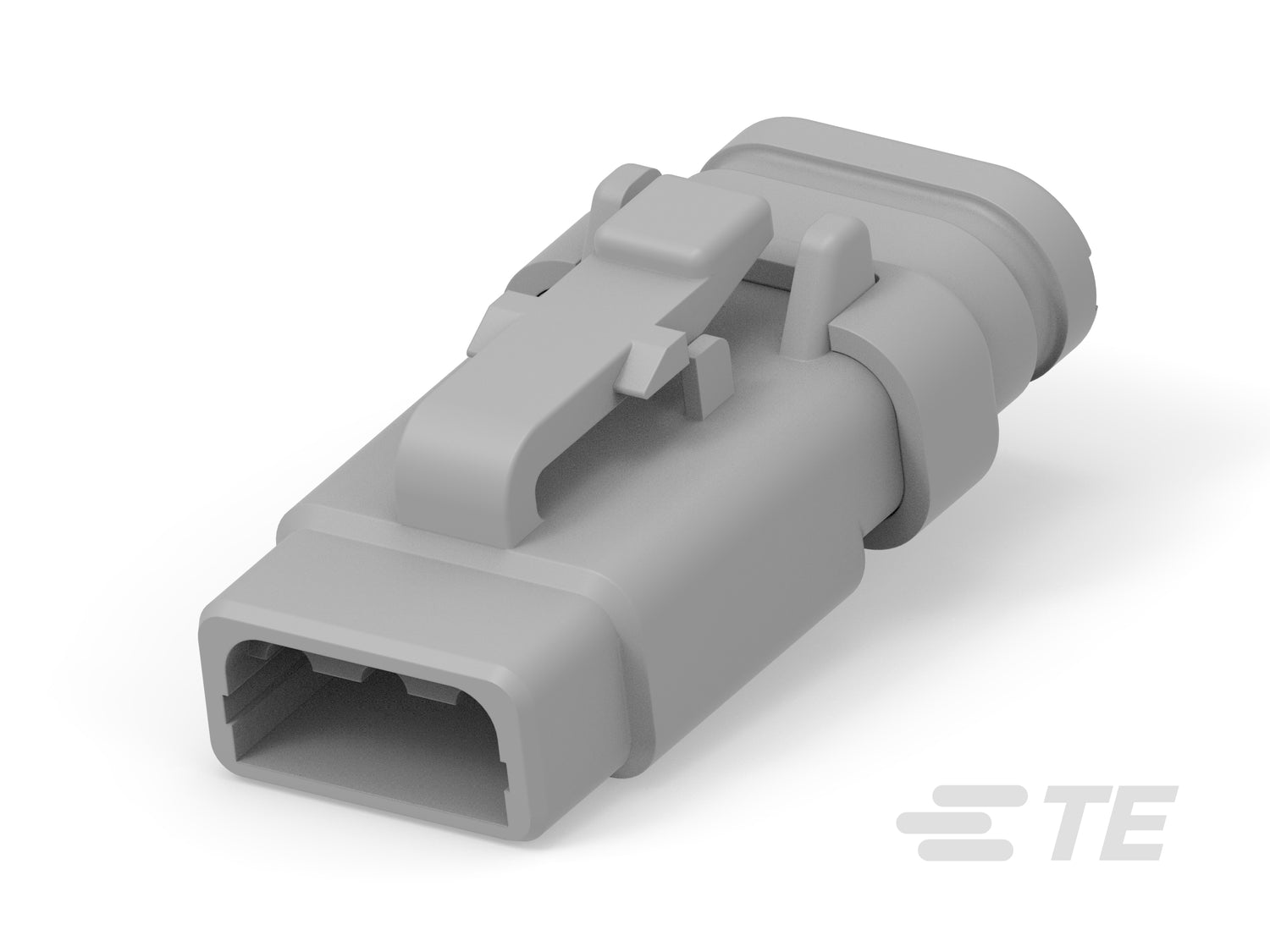

DTM06-3S-E007 Deutsch DTM 3-Way Socket Plug - XCAP

DTM06-3S-E007 is a Deutsch DTM Series 3-way gray plug housing for Size 20 socket contacts for compact sealed electrical harness connections. This E007 modification uses the XCAP/shrink-boot-adapter arrangement, making it distinct from the standard 3-way DTM socket-contact plug; it is designed for an installation in which the rear cable exit and shrink-boot interface matter. The DEUTSCH DTM connector system uses Size 20 contacts with a maximum contact rating of 7.5 A and a nominal operating rating of 250 V, subject to the specified wire, contacts and completed assembly. Check the exact E007 boot arrangement and clearances before selecting accessories.

Typical applications include vehicle, off-highway and industrial harnesses requiring a boot-compatible rear cable exit for environmental protection or harness finishing; verify the selected shrink boot against this E007 housing.

  • Series: DEUTSCH DTM
  • Housing configuration: 3-way plug (socket-contact side)
  • Housing colour: Gray
  • Contact size: Size 20
  • Contact type: Socket
  • Sealing: Sealable; sealing performance depends on correctly specified components and assembly
  • Operating temperature: -55°C to +125°C
  • Operating voltage: 250 V AC/DC (TE housing specification)
  • Contact current rating (maximum): 7.5 A per contact; depends on contacts, wire and operating conditions
  • Variant feature: XCAP / shrink-boot-adapter configuration

Mating Parts

The standard 3-way DTM receptacle family is DTM04-3P (pin-contact side). Confirm the precise mating housing version, keying, seal configuration and any cap or boot requirements for this DTM06-3S-E007 variant before purchase.

Compatible Parts

Select DEUTSCH DTM Size 20 socket contacts to suit the actual wire gauge and termination process, together with the appropriate secondary lock/wedgelock for the 3-way plug configuration. Check supplied assembly contents and part-specific TE accessory data rather than assuming every accessory is included or fits every modified housing.

For the XCAP configuration, verify shrink-boot selection and installation clearance against the manufacturer drawing.

Browse DEUTSCH DTM Series connector housings for related configurations.

Need help matching contacts, wedgelocks, mating housings or compatible tools? Speak to our team and we'll help you select the correct Deutsch DTM parts.


Quantity price breaks

1+
$1.70/each
50+16% off
$1.43/each$1.70
100+20% off
$1.36/each$1.70
500+24% off
$1.30/each$1.70
1000+28% off
$1.23/each$1.70
Part of DEUTSCH DT series
RoHS Compliant
ELV Compliant
Statement of Compliance

Technical Documentation

Product Specifications

Cable exit angle 180 °
Primary product color Gray
Blank cavity position 0
Connector modification Shrink Boot Adapter
Number of positions 3
Number of rows 1
Contact current rating max 7.5 A
Contact size Size 20
Contact type Socket
Mating pin diameter .04 in
Compatible insulation diameter .053 – .12 in
Connector height 1.47 in
Product length .732 in
Product width .551 in
Nominal voltage architecture 48 V
Operating voltage 250 VDC
Centerline pitch .165 in
Housing material PA GF
Compatible with agency standar SAE J2030
Ip rating IP6K9K
Ul flammability rating UL 94V-0
Connector mounting type Cable Mount (Free-Hanging)
Mating alignment With
Mating alignment type Polarization
Strain relief Without
Terminal position assurance No
Circuit application Power
Packaging method Package
Packaging quantity 1
Connector contact terminates t Wire & Cable
Connector housing type Housing for Female Terminals
Connector shape Rectangular
Connector system Wire-to-Wire
Mixed hybrid connector No
Primary locking feature Integrated in Housing
Sealable Yes
Operating temperature max 257 °F
Operating temperature range -67 – 257 °F
Connector position assurance c No
Serviceable Yes
