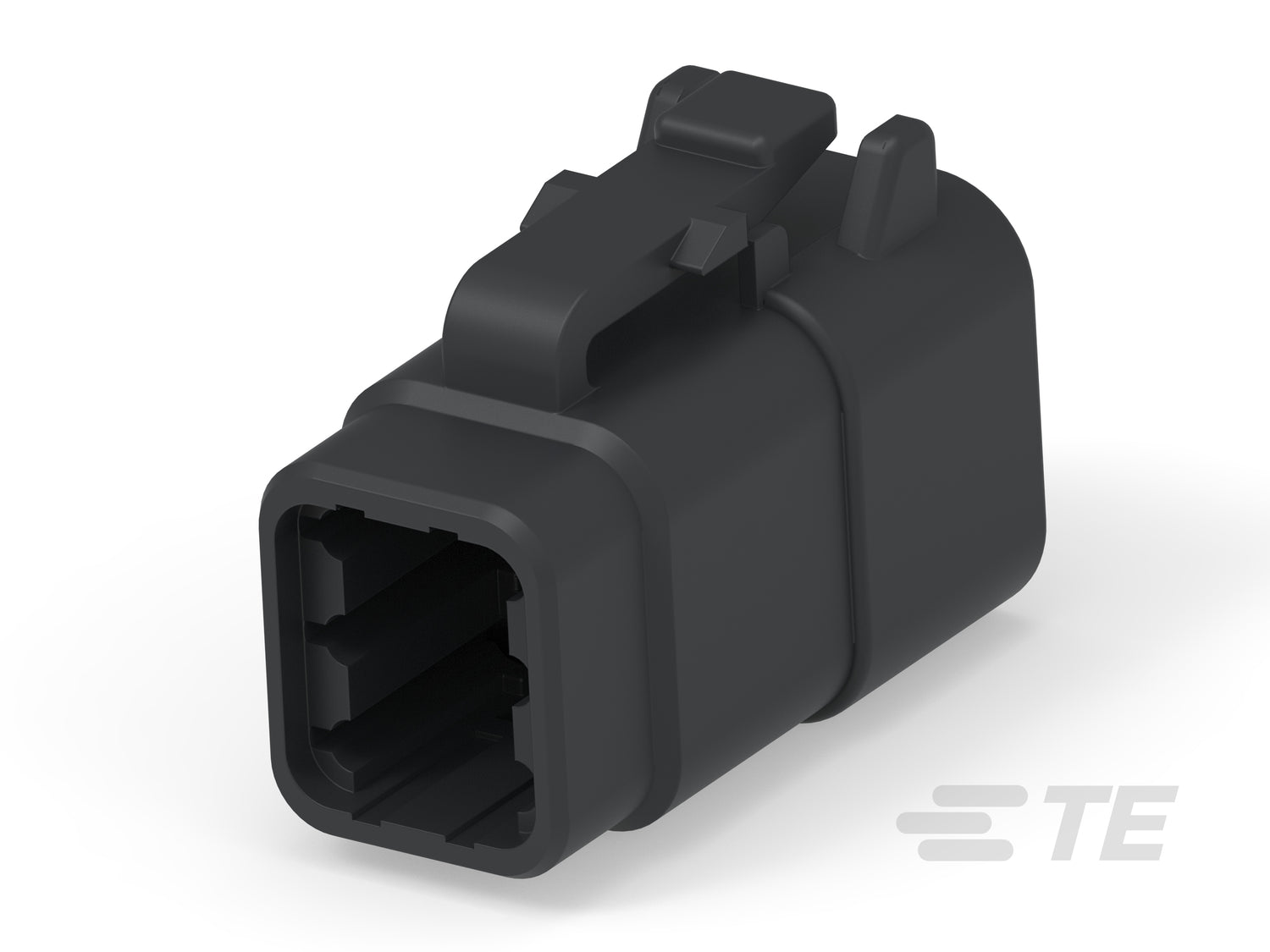

DTM06-6S-E004 is a Deutsch DTM Series 6-way black plug housing for Size 20 socket contacts for sealed wire-to-wire vehicle and equipment harnesses. The E004 suffix identifies the black housing version, distinguishing it from the standard gray 6-way DTM socket-contact plug without changing its basic function as a Size 20 contact housing. DEUTSCH DTM connectors are suited to compact, lower-current circuits requiring positive connector engagement and environmental sealing when correctly assembled. The connector system supports up to 7.5 A per contact and 250 V AC/DC, subject to the contacts, cable and assembly conditions.
Typical applications include multi-circuit sensor and control harnesses, industrial equipment, off-highway machinery and automotive electrical systems needing several sealed signal connections in one housing.
-
Series: DEUTSCH DTM
-
Housing: 6-way plug, socket-contact side
-
Contact size: Size 20
-
Housing colour: Black
-
Sealing: Sealable housing; correct contacts and assembly are required
-
Operating temperature: -55°C to +125°C
-
Contact current rating (maximum): 7.5 A per contact, subject to wire and application limitations
-
Voltage rating: 250 V AC/DC
Mating Parts
For a standard DTM 6-way assembly, the corresponding pin receptacle housing is DTM04-6P. Confirm the mating configuration, seals and any modification-specific requirements before ordering.
Compatible Parts
Uses DEUTSCH DTM Size 20 socket contacts selected for the actual wire size and termination method. The corresponding standard plug wedgelock is WM-6S; confirm suitability for this exact modification and whether a wedgelock is included in the supplied assembly.
Browse DEUTSCH DTM Series connectors for other housing configurations.
