Deutsch | SKU:
M902-2054

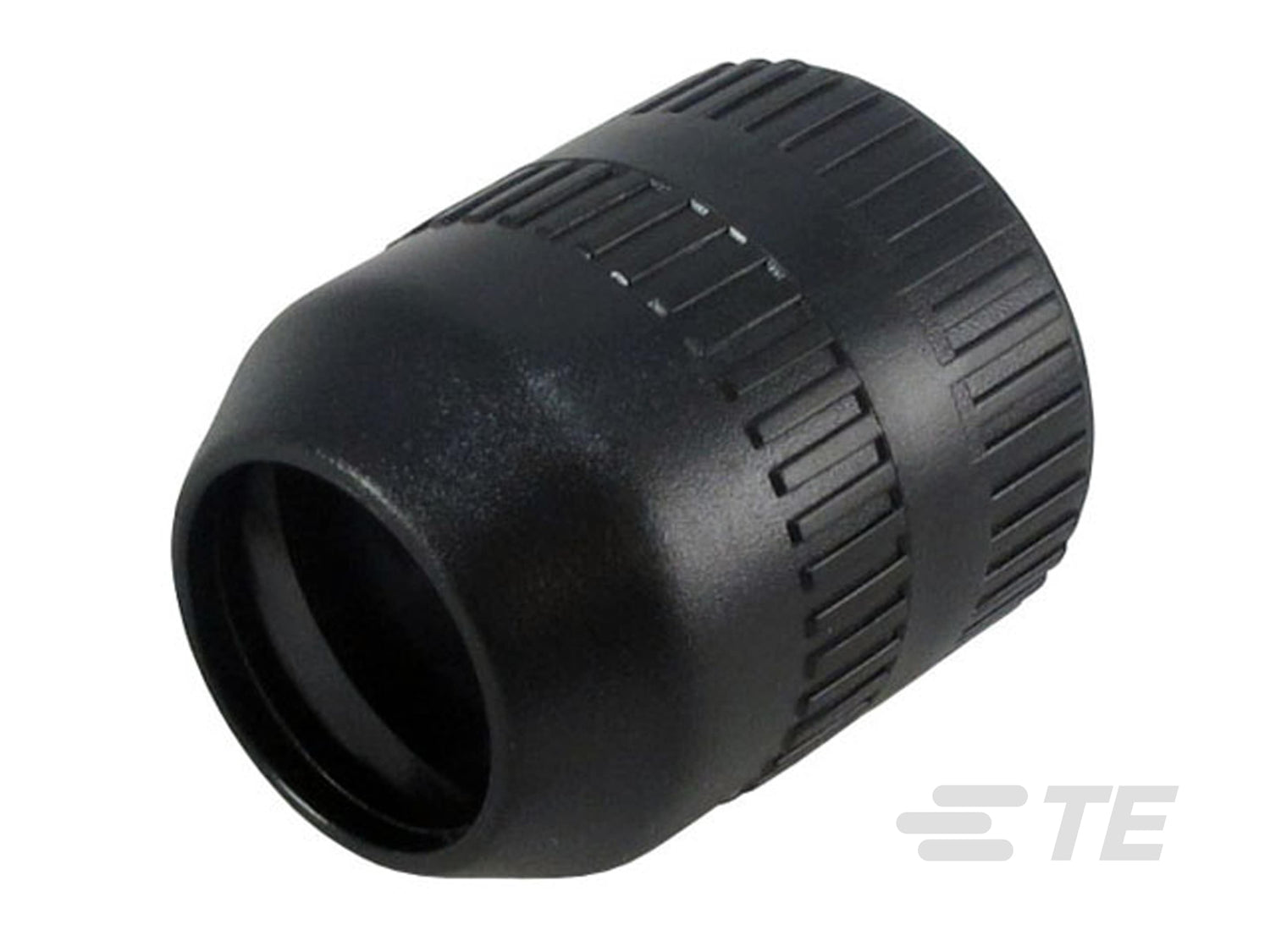

M902-2054 Deutsch HD10 Compression Nut - 0.570"-0.710" Cable Range
M902-2054 Deutsch HD10/HDP20 Compression Nut is a black PBT cable-sealing accessory for shell sizes 6, 9 and 24, sized for 0.570-0.710 in cable.
It is used with HD10/HDP20 rear-interface assemblies with a straight 180° cable exit and matches M902-2164, M902-2194 and M902-2244 backshell configurations.
Choose M902-2054 only when the connector size and cable outside diameter fall within the 0.570-0.710 in range; use M902-2053 for the smaller 0.430-0.570 in cable range.
Specifications
- Series: DEUTSCH HD10 / HDP20
- Accessory: Compression nut
- Shell sizes: 6, 9 and 24
- Cable range: 0.570-0.710 in
- Cable exit: 180° / straight
- Material: PBT
- Color: Black
- Operating temperature: -40 to 134°C
Quantity price breaks
1+
$1.89/each
50+24% off
$1.44/each$1.89
100+28% off
$1.37/each$1.89
500+31% off
$1.31/each$1.89
1000+34% off
$1.25/each$1.89
5000+37% off
$1.20/each$1.89
4619 in stock — lead time on request for 5000+
M902-2054 Deutsch HD10 Compression Nut - 0.570"-0.710" Ca...
Regular price
$1.89
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Black |
| Primary product material | PBT |
| Number of positions | 47 |
| Compatible cable diameter rang | 0 – .71 in |
| Ip rating | IP6K9K |
| Ul flammability rating | UL 94V-0 |
| Packaging method | Box |
| Connector backshell product ty | Backshell |
| Sealable | No |
| Operating temperature max | 273 °F |
| Operating temperature range | -40 – 273 °F |
| Serviceable | Yes |
